Product Description
1, Equipment Name and Model:

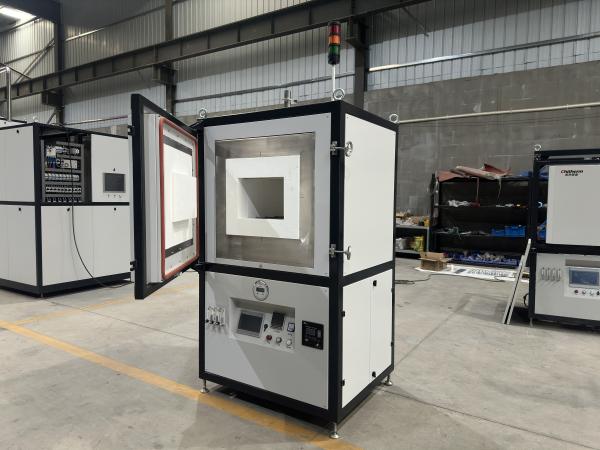

MBF22-11N Medium-temperature Atmosphere Box Furnace
2,Technical Specifications and Basic Configuration | Rated Temperature | 1000°C |
| Maximum Temperature | 1100°C |
| Effective Size | 330mm×200mm×330mm (W×H×D) |
| Sagger Specification | 330mm×100mm×330mm (W×H×D), provided by the customer |
| Loading Method | The sagger is supported by SiC roller rods and arranged in a double-layer and longitudinal double-row manner |
| Heating Element | Silicon carbide rod is inserted inside the ceramic tube |
| Thermocouple Type | N Graduation |
| Number of Temperature Control Points | 1 point |
| Temperature Control Method | Imported temperature control module, with a temperature control accuracy of ±1°C and a PID parameter self-tuning function |
| Sintering Atmosphere | Nitrogen/Air |
| Oxygen Content | Better than 10ppm + the oxygen content of the gas source |
| Oxygen Detection | One micro oxygen analyzer is configured to monitor the oxygen content in the furnace chamber in real time |
| Pressure Detection | A digital differential pressure gauge displays the pressure in the furnace in real time |
| Number of Program Steps | 4×16 steps |
| Heating Rate | ≤5°C/min |
| Reference Dimensions of the Appearance | 1300mm×1900mm×1160mm (W×H×D, excluding the chimney), and the specific dimensions shall be subject to the actual product. |
Product Parameters
3. Delivery List
| Item | Note | Qty. |
| Basic Components | Furnace |
| 1 PC |
| inspection certificate | Certificate of major outsourced components | 1 SET |
| Technical Documents | Instruction Manual, Random Technical Documents of Each Main Outsourced Component, etc. | 1 SET |
| Key Components | Silicon Carbide Rod Inserted in the Ceramic Tube |
| 1 SET |
| Temperature Control Instrument | Shimaden (Japan) | 1 PC |
| Oxygen Analyzer |
| 1 PC |
| Spare Parts | Silicon Carbide Rod |
| 2 PCS |
Hefei Chitherm Equipment Co., Ltd. is an advanced equipment supplier specializing in the research and development, design, manufacturing, sales, maintenance, and service of high-, medium-, and low-temperature industrial furnaces and laboratory furnaces. Its product range encompasses bell furnaces, box furnaces, hot air furnaces, vacuum furnaces, tube furnaces, mesh belt furnaces, bogie hearth furnaces, rotary furnaces, roller hearth furnaces, and pusher furnaces, which are extensively applied in fields such as advanced ceramics, electronic components, thick-film circuits, additive manufacturing, powder metallurgy, new energy, and photovoltaics. These furnaces are suitable for thermal treatment processes of materials including ITO targets, MLCC/HTCC/LTCC, ceramic filters, magnetic materials, CIM/MIM, and lithium battery cathodes and anodes, as well as various other new material processes such as pre-sintering, dewaxing, degreasing, sintering, drying, heat treatment, curing, and ceramization.
